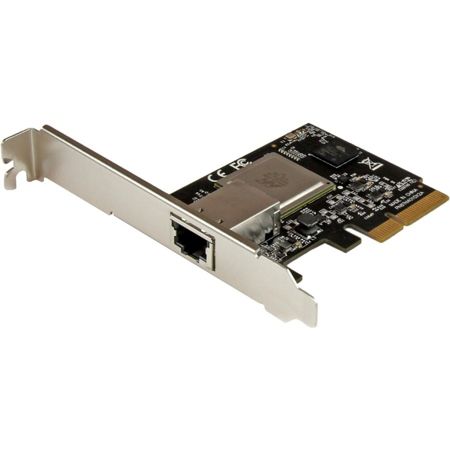

StarTech.com 1 Port PCI Express 10 Gigabit Ethernet Network Card - PCIe x4 10Gb NIC Item # 187015
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
187015
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Add a 10 Gigabit Ethernet port (10 Gbps) to a client, server or workstation through a PCI Express slot. The ST10000SPEX PCI Express 10 Gbps Network Card lets you add a 10-Gigabit Ethernet port to your server or high-powered workstation through a PCI Express x4 (or higher) slot.With rising demand on network resources due to large file transfers, increase in network users and multimedia content, more bandwidth is often required at various levels of your infrastructure. This 10 Gb NIC offers a cost-effective solution for your file or application server or even a high-powered workstation to transfer more data, faster.Fully compliant with the IEEE 802.3an 10GBASE-T standard, the card offers added bandwidth over standard Cat 6a cabling, to meet your network needs without an overhaul of your infrastructure wiring, or a costly upgrade to fiber. The 10 Gbps network card also offers compatibility with VMWare ESXi 5.0/5.1 and Microsoft Hyper-V virtualization software and iSCSI support to combine LAN and SAN functions.For peak operating efficiency, the 10GBASE-T card features the Tehuti TN4010 chipset, compliant with 802.3az Energy Efficient Ethernet and with significantly reduced power consumption versus the popular Intel X540-AT1 chipset. The reduced power consumption also helps to minimize heat generated by the card, to avoid increasing the operating temperature within your server case.The card also supports 16K Jumbo Frames, 802.1q VLAN tagging and is backward compatible with 1 Gbps and 100 Mbps network connections. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Product Details
| Item # | 187015 |
| Manufacturer # | 11478122 |
| maximum data transfer rate | 1.25 GB/s |
| height | 4.7 in |
| System Requirements | Windows 10 |
| Number of Network (RJ-45) Ports | 1 |
| Certifications & Standards | FCC; CE; IEEE Standards:802.3an; 802.3ab; 802.3u; 802.3az; 802.3ad; 802.1Q |
| thickness | 700 mil |
| quantity | 1 |
| Serial Port | No |
| PoE (RJ-45) Port | No |
| width | 0.7 in |
| package contents | 1 Port PCI Express 10 Gigabit Ethernet Network Card - PCIe x4 10Gb NIC; 1 x Low Profile Bracket; 1 x Driver CD; 1 x Instruction Manual |
| depth | 3.2 in |
| Device Supported | Server |
| Product Name | 1 Port PCI Express 10 Gigabit Ethernet Network Card - PCIe x4 10Gb NIC |
| Twisted Pair Cable Standard | Category 6a |
| manufacturer | StarTech.com |
| Host Interface | PCI Express 2.0 x4 |
| Ethernet AUI | No |
| weight | 1.70 oz |
| brand name | StarTech |
| USB | No |
| Card Height | Low-profile |
| Network (RJ-45) | Yes |
| Full Product Specifications | Click to view |
| Media Type Supported | Twisted Pair |
| Total Number of Ports | 1 |
| operating system compatibility | Windows 8; Windows 8.1; Windows 7 Professional; Windows Server 2012; Windows Server 2003; Linux |
| Platform Supported | PC; Linux |
| form factor | Plug-in Card |
| warranty length | 2-year limited |
| Network Technology | 10GBase-T |
| XJACK | No |
| Show More ▾ |
